Three-Arm Puller 250 × 220 mm Universal 206-02

Use the Three-Arm Puller 250 × 220 mm Universal 206-02 for professional, maintenance and workshop applications. Confirmed specifications include outer pull-off span (min. - max.): 0 - 250 mm (1.1/32 - 9.7/8 in); clamping depth outside draw-off: 220 mm (8.5/8 in).

Specifications

• Model: 206-02
• Outer Pull-off Span (Min. - Max.): 0 - 250 mm (1.1/32 - 9.7/8 in)
• Clamping Depth Outside Draw-off: 220 mm (8.5/8 in)
• Width Across Flats Hexagon Socket: 22 mm (7/8 in)
• Max. Torque: 150 Nm (110.64 ft lb)
• Max. Tensile Force: 70 kN
• Max. Tractive Force: 5 t (5.51 US t. sh.)
• Gross Weight: 3.36 kg (7.409 lb)
• CO2 Footprint: 4.4 kg CO 2 e
• Global Sales Capability Given: Yes (REACH, RoHS, POP, PROP65, TSCA)
• Application: For centralized extraction of large bearings, | gears, and discs in all common sizes for craft, | workshop, and industry

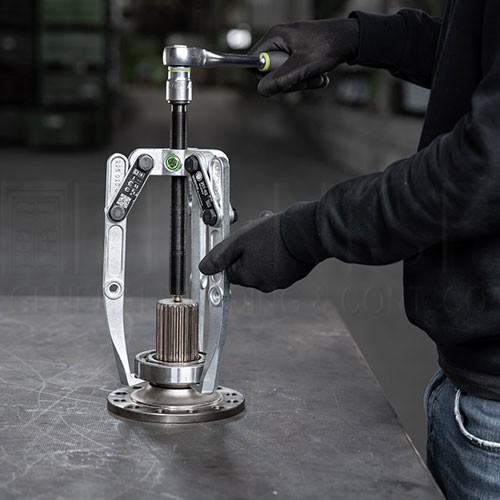

• The heavy 3-jaw puller with oscillating and height-adjustable jaws
• This allows you to remove any component sitting on a shaft that is freely accessible from the outside

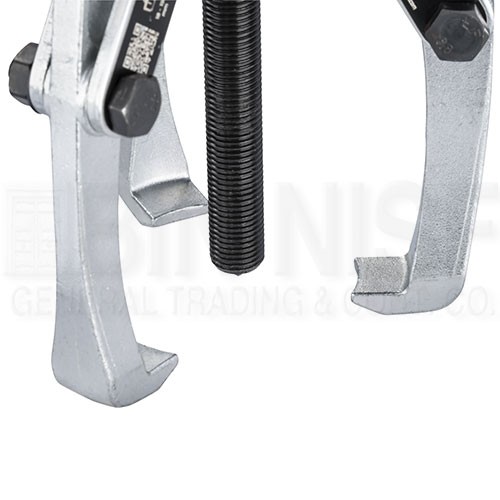

• The oscillating jaws adapt to any installation situation and are universally applicable due to the adjustable reach
• Depending on the design, the shape of the jaws varies
• The 3-jaw design guarantees an even load distribution and thus a particularly secure grip on the part being pulled
