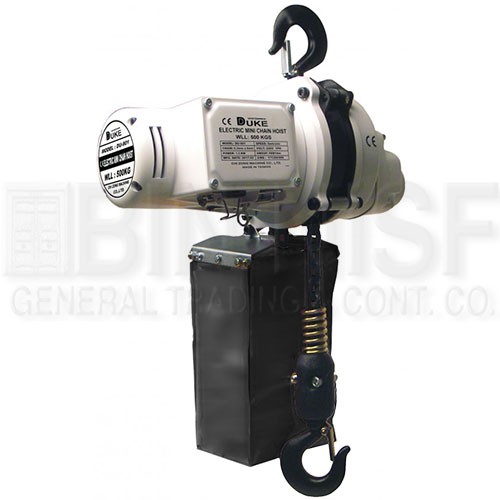

ELECTRIC CHAIN HOIST 750 KG - DUKE (TAIWAN)

Bin No : 101213

Brand: Taiwan Made

284.250 KWD

1 Items Available

*Pictures shown are for illustration purpose only, Actual product may vary.
Usually delivered in 3 business days after order confirmation. Please check Delivery Policy

PRODUCT DETAILS

Model	DU-750
Voltage	380 V~, 3 phase
Power	1.5 hp
Capacity	750 kgs
Lifting height	3 m
Lifting speed	6 m/min
No. of chain falls	1
Chain size	7.1 x 20 mm
Dimensions (L x W x H)	430 x 290 x 600 mm
Net weight	45 kg
Made	Taiwan

Designed for various workplace applications such as general factories, warehouse, construction, plumbing and agriculture
Applied with industrial grade high efficiency induction motor
Enameled wires with heat resistance up to 180^oC, which is specially designed for heavy duty works
Applied with high friction coefficient electromagnetic disc brake and no adjustment required, which provides smooth and reliable operation

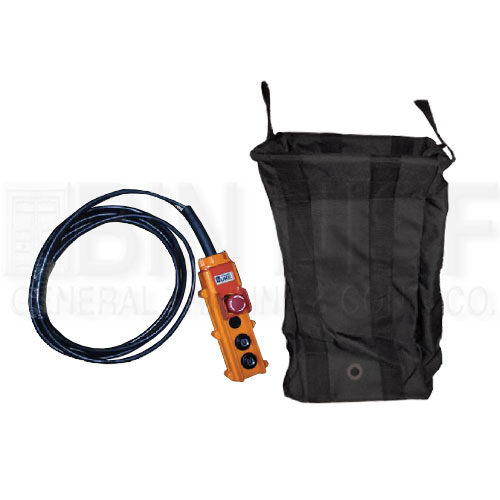

Equipped with 24V low voltage control (electromagnetism) for safety purposes
Upper and lower limiters are to secure hoist body and load object
Reverse phase relay that protects hoist from incorrect wiring
Electric overload device provides protection against overloading by cutting off the power immediately once overloading occurs
Planetary gearing design guarantees a powerful load ability and durable usage
Upper lower hook unit made of alloy steel material by forging formation in four times safety factor
Ball bearing is applied in the lower hook against 360 degree rotation
