VENTILATING FAN INDUSTRIAL 35GSC - KDK (JAPAN)

Bin No : 3179232

Brand: KDK (Japan)

60.000 KWD

11 Items Available

*Pictures shown are for illustration purpose only, Actual product may vary.
Usually delivered in 3 business days after order confirmation. Please check Delivery Policy

PRODUCT DETAILS

Model	35GSC
Blade size	14 inch (350 mm)
Voltage	Single phase
Frequency	50 Hz
Consumption	95 W
Air volume	2590 cmh (1524 cfm)
Max. speed	1430 rpm (min^-1)

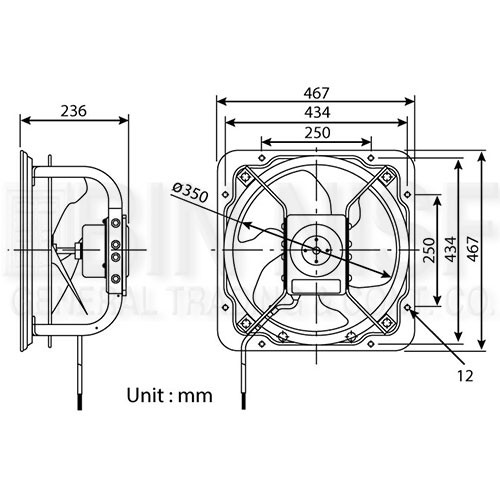

Dimensions (W x H x D)	467 x 467 x 236 mm
Weight	10.50 kg

High pressure series
Reversible, high performance motor
Distinctive wave shape blade delivers a smooth and turbulence-free Airflow
Bell mouth construction incorporated with new blade enables operation with high static pressure
Durable powder coating ensure high rust-resistant capability
Unique drain mechanism avoids the ingress of water and dust into the motor for excellent durability
High performance totally enclosed motor with thermal cut-off
Able to be used over an ambient temperature range of from -10℃ to +50℃
Possible to install horizontally or vertically
