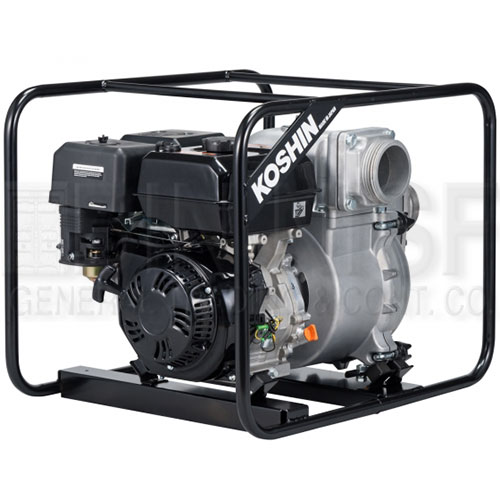

HEAVY DUTY TRASH PUMP KTZ-100X - KOSHIN (JAPAN)

Bin No : 5220020

Brand: Koshin (Japan)

282.000 KWD

Out of Stock Login to save in Wish List

*Pictures shown are for illustration purpose only, Actual product may vary.
Usually delivered in 3 business days after order confirmation. Please check Delivery Policy

PRODUCT DETAILS

Model	KTZ-100X
Connection dia.	100 mm (4 inch)
Connection thread	Outer pipe thread BSP or NPT
Total head	24 m (78 ft)
Delivery volume	1680 L/min (443 USG/min)
Max. suction lift	8 m (26 ft)
Material for mechanical seal	Sic (silicon carbide) × sic
Material for impeller	Hi-chrome
Material for volute	FCD 450
Engine
Model	Koshin K420
Type	Forced air-cooled 4-stroke gasoline engine
Displacement	420 cc
Rated output	7.2 kW (9.8 PS) / 3600 rpm
Max. output	8.6 kW (11.7 PS) / 3600 rpm
Fuel	Automotive unleaded gasoline
Fuel tank capacity	5.9 L (1.5 USG)
Continuous operating time	1.5 hours (approx.)
Starting method	Recoil starter
Dimensions (L × W × H)	816 × 621 × 632 mm
Net weight	78.2 kg (172.4 lbs)
Made	Japan
