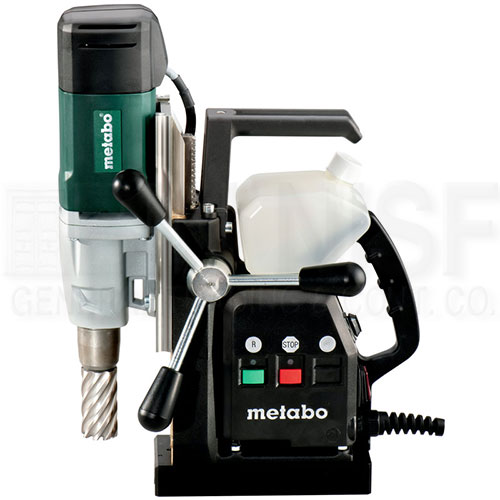

MAGNETIC CORE DRILL MAG 32 - METABO (GERMANY)

Bin No : 001548

Brand: Metabo (Germany)

425.000 KWD

1 Items Available

*Pictures shown are for illustration purpose only, Actual product may vary.
Usually delivered in 3 business days after order confirmation. Please check Delivery Policy

PRODUCT DETAILS

Model	MAG 32 (600635500)
Rated voltage	220-240 V / 50 - 60 HZ
CHARACTERISTICS
Rated input power	1000 W
Output power	520 W
Max. drill-Ø with core drill	32 mm / 1.1/4 inch
Max. drill-Ø with spiral drill	13 mm / 1/2 inch
Maximum drilling depth	50 mm / 2 inch
No-load speed	700 rpm
Speeds at rated load	450 rpm
Bit retainer	Weldon shaft 19 mm (3/4 inch)
Weight	11.9 kg / 26.2 lbs
Cable length	5 m / 16 ft
Torque	50 Nm // 443 in-lbs
Max. depth of feed	160 mm / 6.5/16 inch
Max. magnetic holding force	12250 N
Dimensions of the magnet base	90 x 189 mm // 3.9/16 x 7.1/2 inch
Height carriage lowest position	343 mm / 13.1/2 inch
Height carriage topmost position	490 mm / 19.9/32 inch
VIBRATION
Drilling in metal	2.5 m/s²
Uncertainty of measurement K	1.5 m/s²
NOISE EMISSION
Sound pressure level	85 dB(A)
Sound power level (LwA)	98 dB(A)
Uncertainty of measurement K	3 dB(A)

Magnetic core drill with large depth of feed, therefore suitable for use of core drills, spiral drills and countersinks

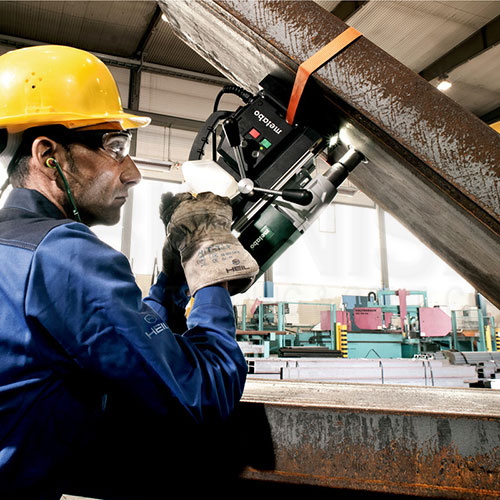

Magnetic base with high holding power permits working on vertical surfaces and overhead
Robust Metabo marathon motor with internal wiring for long service life
Integrated coolant container for easy to dose internal cooling of the core drill
Bright LED light for easy alignment in poor light conditions
Swarf protection can be fixed without tools and protects the user from metal shavings and tool contact
Protective circuit starts motor only if the magnet is activated
Restart protection: prevents unintentional start-up after power supply interruption
Lockable slide for comfortable tool change
Handle for easy carrying and lifting
Resistant mains cable (5 m) with rubber shroud
Includes:
