MAGNETIC CORE DRILL MAG 50 - METABO (GERMANY)

Bin No : 001456

Brand: Metabo (Germany)

415.000 KWD

Out of Stock Login to save in Wish List

*Pictures shown are for illustration purpose only, Actual product may vary.
Usually delivered in 3 business days after order confirmation. Please check Delivery Policy

PRODUCT DETAILS

Model	600636500
CHARACTERISTICS
Rated input power	1200 W
Output power	620 W
Max. drill-Ø with core drill	50 mm / 2 inches
Max. drill-Ø with spiral drill	20 mm / 3/4 inch
Maximum drilling depth	50 mm / 2 inches
Thread cutting	M 16
No-load speed	100 - 250 / 200 - 450 rpm
Revolutions at rated load	250 / 450 rpm
Bit retainer	Morse taper MK 2 / Weldon shaft 19 mm (3/4 inch)
Weight	12.7 kg / 28 lbs
Cable length	5 m / 16 ft
Torque	90 / 50 Nm // 797 / 443 in-lbs
Max. depth of feed	160 mm / 6 5/16 inches
Max. magnetic holding force	12250 N

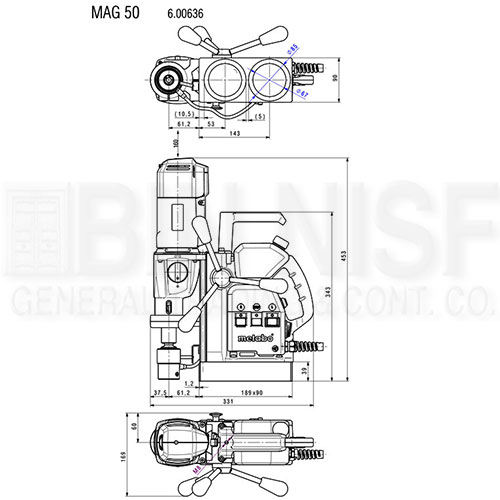

Dimensions of the magnet base	90 x 190 mm // 3 9/16 x 7 1/2 inches
Height carriage lowest position	457 mm / 18 inches
Height carriage topmost position	610 mm / 24 inches
VIBRATION
Drilling in metal	2.5 m/s²
Uncertainty of measurement K	1.5 m/s²
NOISE EMISSION
Sound pressure level	79 dB(A)
Sound power level (LwA)	92 dB(A)
Uncertainty of measurement K	3 dB(A)

Magnetic core drill with large depth of feed, therefore suitable for use of core drills, spiral drills and countersinks
Magnetic base with high holding power permits working on vertical surfaces and overhead
Robust Metabo marathon motor with internal wiring for long service life
Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised speeds, which remain constant under load
Clockwise/anti-clockwise rotation with thread cutter
Durable two-speed gearbox with oil bath lubrication for ideal speeds
Integrated coolant container for easy to dose internal cooling of the core drill
Bright LED light for easy alignment in poor light conditions
Swarf protection can be fixed without tools and protects the user from metal shavings and tool contact
Protective circuit starts motor only if the magnet is activated
Overload protection: protects the motor from overheating
Restart protection: prevents unintentional start-up after power supply interruption
Lockable slide for comfortable tool change
Handle for easy carrying and lifting
Resistant mains cable (5 m) with rubber shroud
