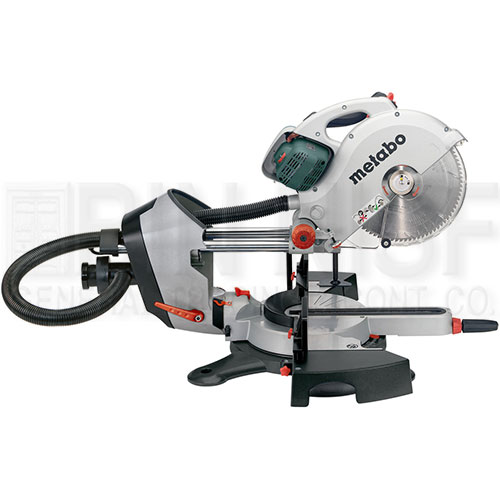

MITRE SAW KGS 315 PLUS - METABO (GERMANY)

Bin No : 434025

Brand: Metabo (Germany)

315.000 KWD

Out of Stock Login to save in Wish List

*Pictures shown are for illustration purpose only, Actual product may vary.
Usually delivered in 3 business days after order confirmation. Please check Delivery Policy

PRODUCT DETAILS

Model	KGS 315 PLUS (0103150000)
Rated voltage	230V / 50Hz
Rated input power	1600 W
Rated input power S1 100%	1600 W
Rated input power S6 20%	2200 W
Saw blade	315 x 30 mm (12.3/8 x 1.181 inch)
No-load speed	3100 - 4100 rpm
Revolutions at rated load	4100 rpm
Cutting speed	51 - 68 m/s (167 - 223 ft/s)
Maximum cutting width 90°/45°	320 / 223 mm (12.9/16 / 8.3/4 inch)
Maximum cutting depth at 90°/45°	120 / 76 mm (4.11/16 / 3 inch)
Cutting capacity 90°/90°	320 x 120 mm (12.9/16 x 4.11/16 inch)
Cutting capacity 45°/45°	223 x 76 mm (8.25/32 x 3 inch)
Turntable setting left / right	47 / 60 °
Saw blade tilt left / right	46 / 46 °
Sound pressure level	89 dBA
Sound power level (LwA)	98 dBA
Uncertainty of measurement K	2.6 dBA
Dimensions	950 x 765 x 660 mm (3.2 x 2.5 x 2.2 ft)
Support surface	1070 x 505 x 365 mm
Cable length	2.1 m (7 ft)
Weight	27.2 kg
Made	Germany

Maximum flexibility when sawing thanks to rotating table and inclinable saw head on both sides
Enormous cutting performance due to extremely powerful universal motor and large saw blade
Speed control for extended range of application, e.g. for cutting of aluminium profiles and plastics
Sliding function for wide work pieces
Easy transport thanks to ergonomically-designed handles and saw head lock
Superb dust extraction capability thanks to a dual extraction port design aligned closely to the work piece
Vario-Constamatic (VC)-Full wave electronics for working at customised speeds to suit the application materials, and speeds that remain almost constant even under load
Metabo Quick for changing saw blades without tools
Soft start for long service life of motor and drive
Fast and precise setting of common angles using stop points
Sliding high rear fence profiles for safe sawing
Material clamp for secure fixing of the work piece from the top or front
Integrated, pull-out table width extensions made from die-cast aluminium
Depth guide for easy creation of grooves
All scales and operating elements are visible from the working position and can be operated intuitively
