DA-3 3 TON 5 MTR ELECTRIC CHAIN BLOCK - Elephant (Japan)

Bin No : 101011

Brand: Elephant (Japan)

1170.000 KWD

Out of Stock Login to save in Wish List

*Pictures shown are for illustration purpose only, Actual product may vary.
Usually delivered in 3 business days after order confirmation. Please check Delivery Policy

PRODUCT DETAILS

Model		DA-3
W.L.L. (lbs)		6600
W.L.L. (mt)		3
Test Load (mt)		3.75
Standard Lift (ft)		10
Load Chain Dia (mm) x Number of Falls		9.5 x 2
Lifting Motor Output (H.P.) (DB) High: Low Speed		4.62
Lifting Speed (ft/min) (DB) High:Low Speed	50Hz	14
	60Hz	17

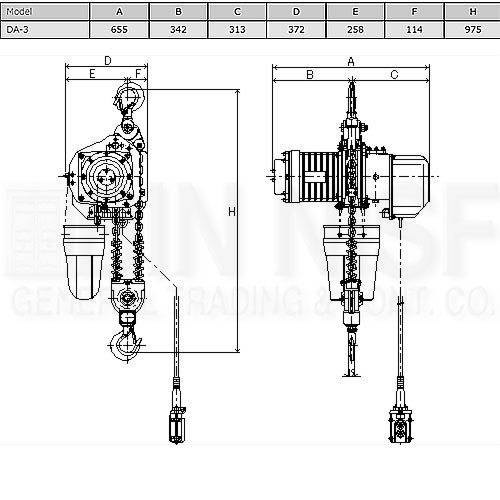

Minimum Distance H (in)		37
Ampere (A)		15.3
Net Wt. (lbs) 10' : 20'		320
