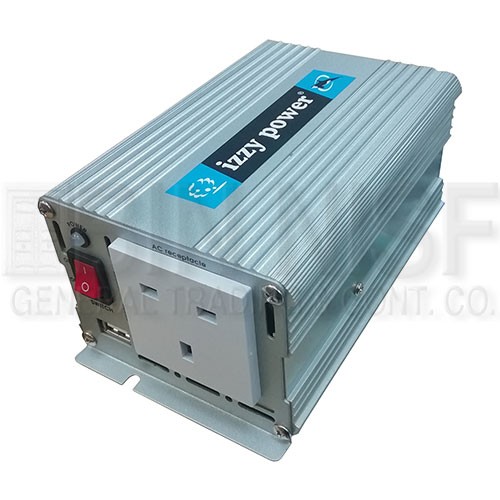

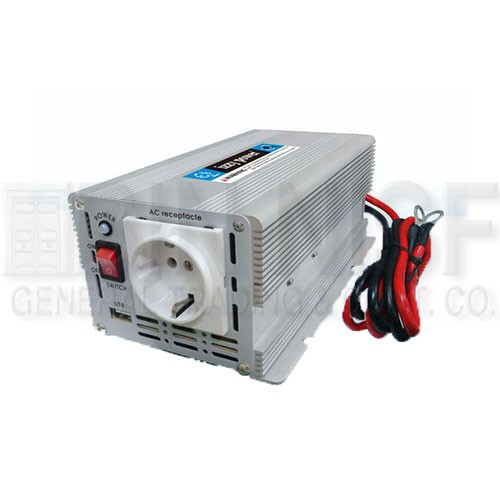

AC TO DC 600W INVERTER - Izzy Power (Taiwan)

Model No

HT-M-600-12

Wave Form

Modified sine wave

AC Voltage

120V/230V

Output power

600W

Surge power

1200W

Frequency

50/60HZ± 3%

AC regulation

±8%(100V:±10%)

USB port

3A/5V MAX.

No Load current draw (12V)

0.5A

DC voltage (V)

12

Voltage range

10~16VDC (12V)

Efficiency

85%

DC connector

Cable X 1

Battery low alarm

10.5 ± 0.5V (12V)

Battery low shutdown

10 ± 0.5V (12V)

Over voltage

16 ± 0.5V (12V)

Over temperature

55℃ ± 5℃

Short circuit protection

Shut-Off

Battery polarity reverse

Fuse burn out

Over load

Shut down if Re-Try is STILL FAILED

Working temperature

-15℃~ +45℃

Working humidity

20%~90% RH Non-Condensing

Storage temperature, Humidity

-30℃~ +70℃/-22℉~ +158℉, 10~95% RH

Temperature coefficient

±0.05% ℃ (0~55℃)

Dimension (LXWXH)(MM)

230 X 95 X 75

Net weight (Kg)

1.4
